Product Introduction:
Our company is a joint ventor that manufactures, research and develop optic electronic instruments and animal experiment equipments.We also cooperate with many renowned research institutions to develop advanced animal experiment equipmens. Our products are widely used in research, teaching and phamacutical areas for pathological and pharmacological tests. The process of observing the mesentery keeps constant temperature and humidity.
Main products: Autocontrol experiment equipments for animal mesentery under constant temperature and humidity
(mesenteric Microcirculation, mesenterium,
Animal mesenteric, Animal mesenterium Microcirculation),microcirculation microscope, Animal anatomize Platform.ears platform, the fixed station for putting animal head etc.
Those equipments are easy to operate and use, reliable and easy to clean.When the equipments are used with computer, it can display images, measure,store,check and print the patients’ data.Our company can also design and manufacture equipments according to customers’ needs.
Animal types suitable for using the Animal equipments(mesenteric
Microcirculation , mesenterium,Animal
mesenteric, Animal mesenterium Microcirculation): mouse, white rat, rabbit, dogs etc. Main observation body parts: the blood capillary state of animal mesentery, auricle, eye conjunctiva, organ Observation items: animal blood flow in the capillary, change of the caliber.
Main Technical Parameter
(1)Main Configure

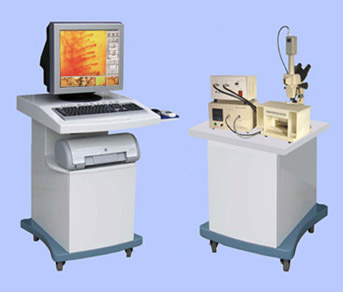

1、 Microcirculation Microscope
2、animal experiment Computer Graphicswork Station
3、constant temperature and humidity fluid slot
4、temperature controller
5、 platform for putting animals/platform for putting animal ears
6、adjustable light(light from up to bottom)
(2) Main Technical Parameter
1、Objective lens：5X，10X；
2、Eye lens：10X；
3、Illuminance：≥5000LX；
4、constant temperature and humidity attemperation fluid：normal temperature: 0～50℃；
5、Image on 14″monitor：（5X Objective lens）＞200 times；
6、Image on 14″monitor：（10X Eye lens）＞500 times
 |
|

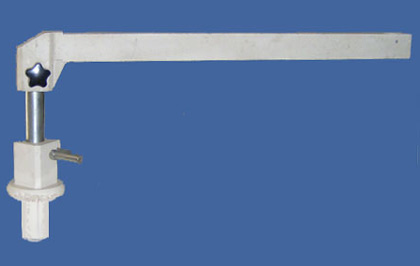

Microscope Rotating Arm
(1)Length of rotating arm :600mm；(2)Distance from up to bottom:140mm；(3) radius of rotation:600mm；(4) angle of rotation:360 degree

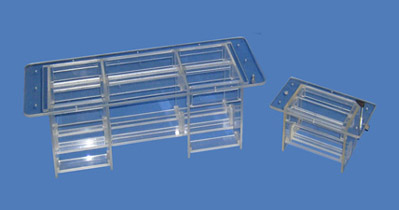

Animal anatomize Platform
Mesentery
(Animal mesenteric,mesenteric Microcirculation,
Animal mesenterium Microcirculation,mesenterium,)
is the best position for microcirculation observation. Mesentery is usually thin with good light transmittance and full of capillaries.
Obervers can clearly see the distribution and direction of the mesentery arteriole, arteriole, capillary,thin vein,and small veins,the shrinkage and dilatation of caliber under physiology, pathologicall state,and the change of blood flow, red blood cell conglomeration,white blood cell, hematoblastic, hematoblastic adhesion,thrombopoietic and thrombotic, lymphatic microcirlation, lymph valve, lymphatic shrinkage, lymphocytic flow diastolic, pathologic changes of lymph microcirculation.
Mesentery
(mesenteric
Microcirculation,Animal mesenteric,Animal
mesenterium Microcirculation,mesenterium) is the best position for microcirculation observation for pathological change and medical improvement on microcirculation. Mesentery is also the best position for pathological observation for teaching.
 |
