HD-WX-10 Multi-location Microcirculation Microscope

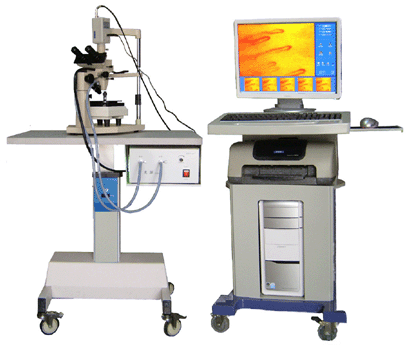

Multi-location Microcirculation Microscope

(Can not be continuously adjustable magnifying power)

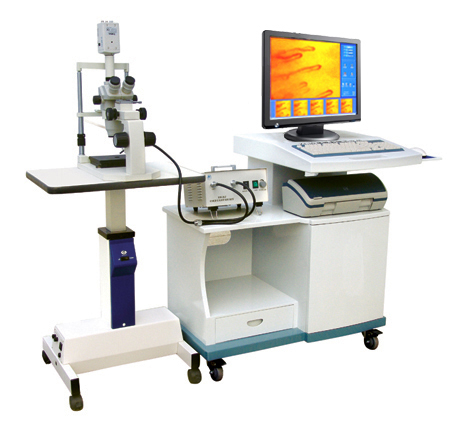

Multi-location Microcirculation Microscope

(ultra microscope,high-resolution microscope,high-magnification microscope)

(Continuously adjustable magnifying power)

Characteristics:
Double object lens with adjustable focus and continuously adjustable magnifying power
Long working distance of 10cm
Freely adjustable illuminating angle of optic fibers
Focus adjustment hand wheel
With two specialized microcirculation software installed for nailfold and bulbar conjunctiva analysis
Operating system for the software: windows98/windows2000/windowsXP

Configuration:
Multi-part microcirculation microscope (ultra microscope,high-resolution microscope,high-magnification microscope) with paired eyepieces
Double color light source and optic fibers for medical use
High-resolution color CCD camera
Advanced computer configuration
Color jet printer with outstanding and reliable performance
Nice-looking trolleys

Technical specifications：
■Ratio of magnification change：1：7
■eyepiece：10X
■magnification range of object lens：0.65X～4.5X
■Working distance：95mm
■Hand piece：tilt 45°
■Visual degree adjustment：±5°
■Hand piece working mode：horizontal and vertical
■Lateral movement：≥30mm
■longitudinal movement：≥20mm
■front rack lifting range：≥80mm
■mercury lamp：220v 125w
■halogen tungsten lamp：12v 50w
■axial flow blower：220v 18w
■optic fiber：Φ6mm transmittance≥70%
■Power supply：220v 50Hz（optional）
■safety class：ClassΙtype B

01

02

03

04

05

06

07

08

09

Specifications

Multi-location Multi - purpose. Microcirculation Microscope (ultra microscope,high-magnification microscope,high-resolution microscope)  is an advanced medical Instrument equipped with a special cold light source, all kinds of microscopic examination of the capillaries of the skin, mucosa and muscle are traumaless.It can be used for ecological observation, photographing and video-recording the microcirculatory status.

This instrument possesses a computerized microscopic (high-magnification microscope,ultra microscope,high-resolution microscope)  dim-light TV monitoring and an Microcirculation (ultra microscope) Image Data Analyzing System, being able to measure the diameter and the cross-section area of the microvessel, as well as the speed and the quantitative amount of blood flow. By means of image analysis, the density of microvessels could be evaluated and thrombotic masses can be isolated and clearly shown. This new instrument devotes to a newest scientific technique for observing the micro-world of medical studies. It has been effectively applied in many hospitals. Medical universities and scientific research, institutes in our country for ecological observations and the early diagnosis of microcirculatory changes in many clinical departments for various diseases, such as, shock, hypothermic anesthesia. reconstruction of amputated limbs, extracorporeal circulation, cardiac surgery ,burns. vasculitis, Raynauds diseases, hypertension, coronary disease, mycoardial inforction. cardiac failure, hepatitis, leukermia, anemia bronchial asthma, cerebrovascular diseases, pulmonary emphysema, corpulmonale, acute nephritis, chronic nephritis, peptic ulcer, pancreatits., diabetes mellitus, systemic lupus erythematosis. Rheumatoid arthritis, scleroderma, fulminant epidemic meningitis, toxic dysentery, pneumonia, toxemia of pregnancy, eclampsia. And so forth. It has also been practically used in the clinical wards of Dermatology, Chinese Traditional Medicine, Oncology, Acupuncture and Moxibustion. This instrument has been highly appreciated in being used in-cases of DIC( Disseminated Intravascular Coagulation) which is a life-threatening condition characterized by acute microcirculatory thrombosis followed by a severe critical acute microcirculatory failure.

In China, this multi-location microcirculation microscope (high-magnification microscope,ultra microscope,high-resolution microscope)  has been used in clinical practice for monitoring intensive care patients, predicating the effect of treatment and prognosis, and directing the emergent. management of critical conditions.

Our plant is the only nationally designed factory for specialization in the Manufacture of microcirculation microscope (high-magnification microscope,ultra microscope,high-resolution microscope)  system products in China. With great honor, this instrument awarded the National Invention Prize. The National Technological Development Prize. The World Invention Gold Prize in Leipsic and the International Patent Gold Prize, as well as World Invention Prize. The instruments have been exported to more than ten countries in the world.

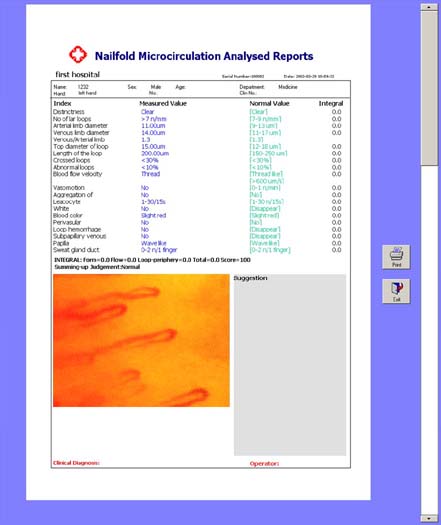

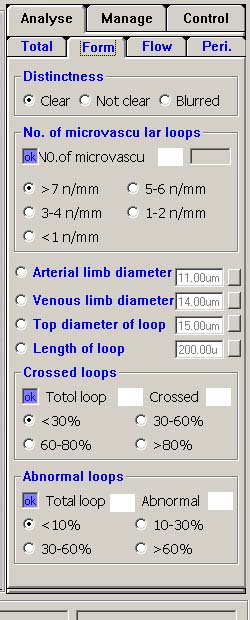

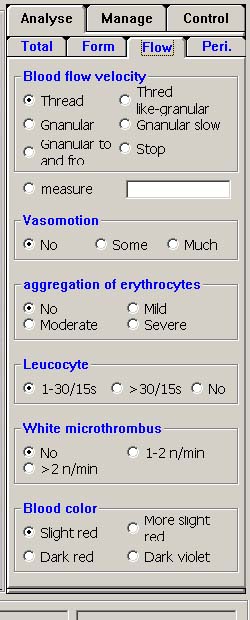

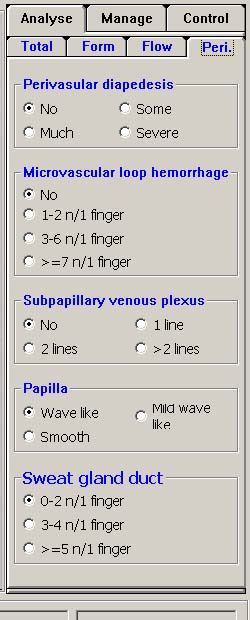

Following is the control panel , measurable data and final report by the Microcirculation (ultra microscope) Image Data Analyzing System.

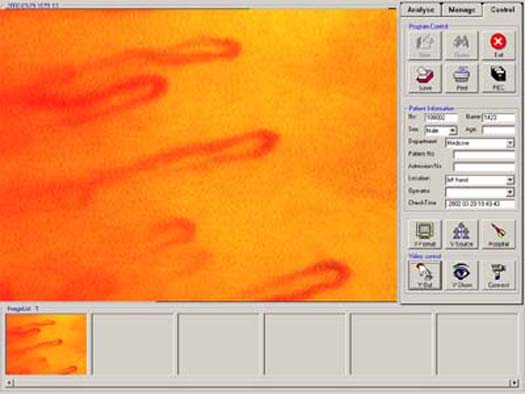

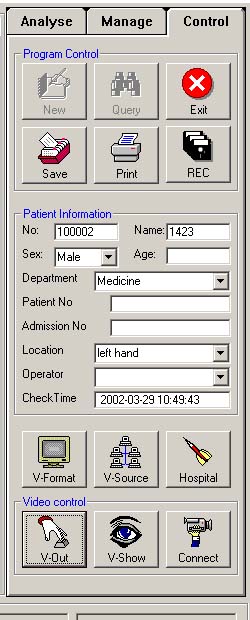

Microcirculation Image Data Analyzing System Control Panel
